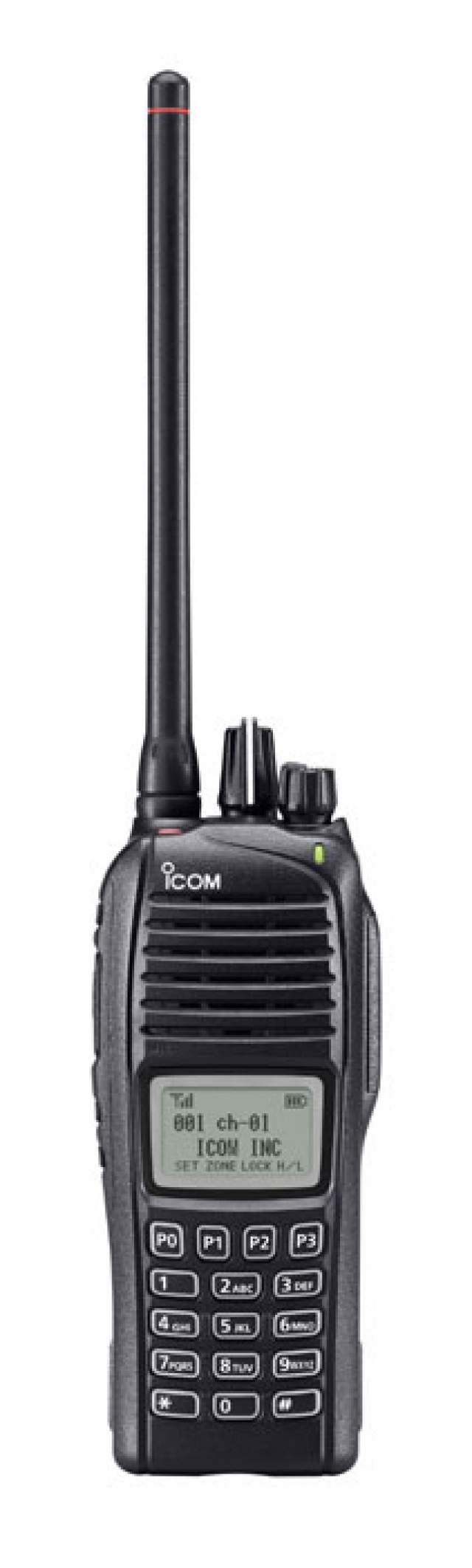

ICOM IC-F3262DT
ICOM IC-F3262DT

ref.: C-F3262DT/DS IC-F4262DT/DS

Brochure

688.80€

VAT included 23 %

Price without VAT: 560.00€

Contact us
  • Description
  • Specifications
  • Acessories

Advanced IDAS™ Digital Handheld with Built-in GPS and Waterproof Protection

IP67 Waterproof & Dustproof Protection

IP67 Waterproof & Dustproof Protection

The IC-F3262D series provides protection against dust and water that is equivalent to IP67. The radio can withstand 1m depth of water for 30 minutes.



Man Down and Lone Worker Functions for Emergency Call

The man down function* automatically sends an emergency signal when the transceiver is left in a horizontal position. The lone worker function also can transmit an emergency signal when the radio is not operated for a preset period. These emergency signals can be sent with GPS position data* to alert your co-workers or dispatch of any potential trouble.

* Depending on version.

800mW (typ.) Audio Output Power

800mW (typ.) Audio Output Power

The built-in BTL amplifier doubles the audio output power and the large 40mm speaker delivers loud 800mW (typ.) audio to receive all calls under noisy environments.



Built-in GPS Receiver*

GPS Receiver

Your current position data can be attached to a voice or data (SDM, status or emergency signal) transmission and can be sent to dispatch stations*.

Built-in GPS Receiver



* Depending on version.
* To graphically show the received position data, an external PC application is required.



14-pin Accessory Connector

14-pin Accessory Connector

The new 14-pin accessory connector enhances audio output capabilities with the built-in BTL amplifier. The optional HM-184 speakermicrophone has a 1000mW (typ.) audio output for loud and clear communications.



Large Full Dot-Matrix LCD

Using a large full dot-matrix LCD (32 × 18mm), the IC-F3262D series shows two lines of easy-to-read text messages. The bottom row shows assigned functions to the [P0] to [P3] buttons.

Long Lasting Battery Life

GPS type

Operating Time
Built-in GPS type 10.5 hours (approx.)
Non GPS type 12 hours (approx.)

* Digital mode typical operation in 5:5:90 duty cycle, power save on.

dPMR™ Features

The IC-F3262D series* meets dPMR standards (TS 102 658) and provides dPMR Tier 2 Mode 1/2/3 operation. The following dPMR features are programmable.



  • Individual/group call
  • All group call
  • Emergency
  • Call log
  • Status message
  • SDM (Short Data Message)
  • GPS
  • Stun, kill and revive
  • Digital voice scrambler
  • Transparent data mode

* dPMR version only.

Call Setup and Clear Down

The "Call setup and clear down" which is used in 5-Tone or BIIS signaling in analogue radios is implemented in the dPMR system. The IC-F3262D series confirms availability of the destination radio before you talk. 5-Tone or BIIS users can introduce dPMR without hesitation and avoid a new learning curve with these radios.

Transparent Data Modem Function

When IC-F3262D series is connected to a PC or other external equipment, the transparent data modem function allows communication in a 6.25kHz channel. It can be used for remote telemetry system control or data applications.

Built-in Voice Scrambler

The built-in inversion voice scrambler* provides secure conversation in analogue mode. When using IDAS digital mode, the digital voice scrambler provides a 15-bit key (about 32,000 codes) as standard.

* Inversion voice scrambler is not compatible with UT-109R/UT-110R voice scrambler.

Status Messages

The IC-F3262D series has 32 programmable status messages. The status messages can be used as special functions to control the radio such as ambience listening (Auto TX), radio stun/kill/revive and GPS position reporting/request.

Other features

  • 512 memory channels with 128 zones
  • 5W output power both in VHF and UHF
  • Built-in 2-Tone, 5-Tone and BIIS 1200*
  • CTCSS/DTCS encoder/decoder*
  • MIL-STD 810 G rugged construction
  • 8 DTMF autodial memories
  • Tactical group function
  • Busy channel lockout, repeater lockout
  • Power on password
  • Time-out timer
  • Talk around function
  • Low battery alert
  • Escalating alarm
  • Surveillance function

(* = Analogue mode only)

Supplied accessories (May differ according to version)

  • Battery pack, BP-232WP
  • Belt clip, MB-94R
  • Antenna



  • IDAS and IDAS logo are trademarks of Icom Incorporated.
  • dPMR and the dPMR logo are trademarks of the dPMR MoU Association.
  • NXDN is a trademark of Icom Incorporated and JVC KENWOOD Corporation.
  • LTR is a trademark of E.F. Johnson Technologies Inc.
  • All other trademarks are the properties of their respective holders.
